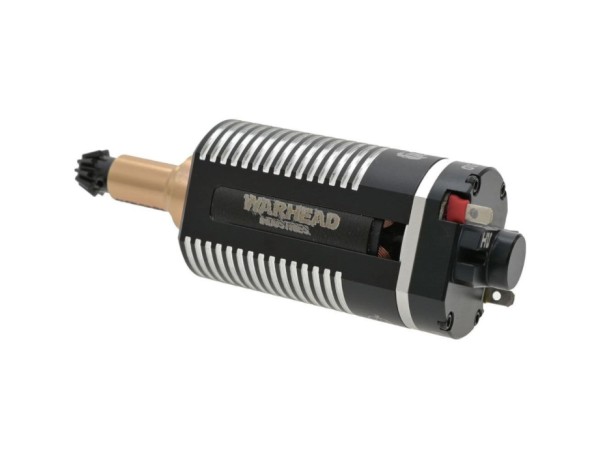

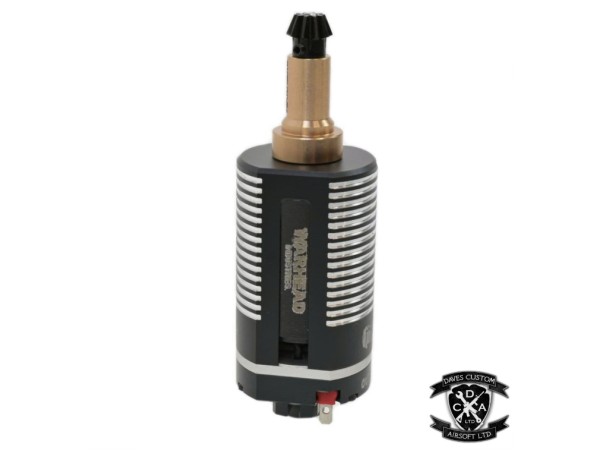

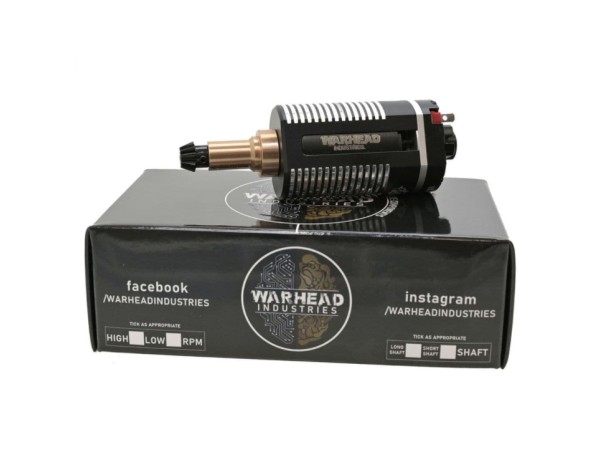

Warhead Industries - Brushless Motor, Ultra High Speed, Long Shaft

These Warhead Industries Brushless motors are without doubt the best Airsoft motors on the market, utilising the latest brushless motor technology which is superior to standard brushed motors in every regard. This particular model is the Ultra High Speed Long Shaft Version and we advise using this motor with caution on only the highest reliability gearbox setups as this motor is hot as a $2 pistol.

Warhead motors will work excellently with mosfets such at the GATE TITAN, GATE ASTER, BTC, Jefftron Leviathan and Perun Optical Units. Active braking may be used however we advise against this as the negative impacts often outweigh the benefits of using this mode. ROF control functions on these mosfets should not be used as these motors require constant DC power from the battery of your weapon.

When installing the grub screw on the D-pinion gear, we suggest using Loctite 270 or 648 to ensure a tight fit. Always lightly grease your pinion gear when installing into your AEG.

Features

• Operating voltage - 7.2v - 11.4v (2 to 3 cell lithium polymer battery)
• Brushless DC motor
• High Efficiency, Excellent Reliability, Increased Performance
• CNC 7075 Aluminium Casing
• High temperature resistant quality copper windings
• High quality magnets
• Internal ESC with over amp draw and low voltage cut off
• High quality D-cut removable pinion gear
• 35,000RPM at 7.4v - 52,000 RPM at 11.1v
• Increased reliability and lower maintenance requirements
• Reduced operational and mechanical noise
• Longer lifespan (no brush and commutator erosion)
• Elimination of ionizing sparks from the commutator (ESD)
• Near-elimination of electromagnetic interference (EMI)
• Easy to fit with no modification or additional wiring required
